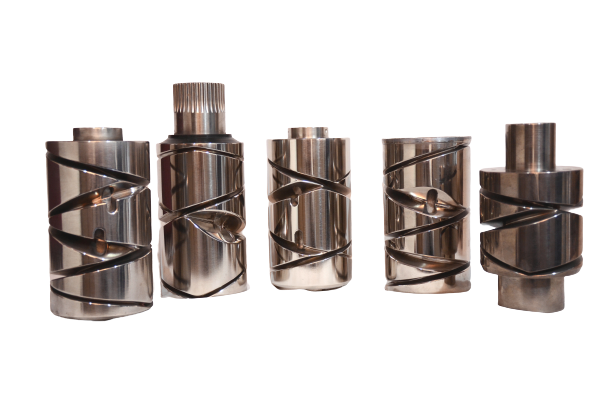

Auto Coner Drums

This drum is made from a special grade thermoset polymer which has excellent wear resistance and machinig properties. After machining each drum is super polished, dynamically balanced and fitment dimensions inspected. At additional cost ceramic inserts, side flanges and aluminum bushing can be provided to extend life.

• Most Suitable for woolen and worsted yarns
• Evenly hardened so that recesses and grooves are equally protected
• Wear resistance surface increase drum life by two times compared to hard Anodized Drum
• Alloy Metal Plasma Coated Drums for Schlaforsht Autoconer 138, 238, 388, Ac/5, Ac/6
• Savio Autoconer espero, Orion, polor
• Murata Mac-Coner 7II, 7V

Application	Specifications	Winding Angle	Count range	Yarn Material	End Use
Automatic Winder – Steel Drum	1.5 Truns Uniform Pitch OD-95mm 150mm Traverse	18.5 Deg	Ne 20s to 60s	Cotton, Manmade fibres	Package Dyeing
	2 Truns Uniform Pitch OD-95mm 150mm Traverse	14 Deg	Ne 60s to 100s
	2 Truns Acc Pitch OD-95mm 150mm Traverse	14 Deg	Ne 10s to 30s		Knitting, Warping,Etc
	2.5 Truns Acc Pitch OD-95mm 150mm Traverse	11.3 Deg	Ne 30s to 100s
	All drums with above specifications are available in Hard Anodized Aluminum materials also
